Introduction:
1. This V series CNC milling machine is fast feed, so it is suitable for batch parts with many tools, complicated processing.
2. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts, etc.
Product Characteristics:
1. Three axis adopt ball linear guide way or roller linear guide way, rapid feed:48m/min
2. Base and column is with big span, which can bear the inertia generated by high G, and the overall dynamic response chaacteristics of the machine tool are high.
3. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.
4. Optional with belt type spindle 10000rpm, direct connection type 12000, 15000rpm spindle and through cooler spindle, annular spray spindle.
Specification:
| ITEM | V85D |
| Table size | mm | 1000*500 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 500 |
| Distance between spindle and table | mm | 180-680 |
| Distance between spindle and column | mm | 554 |
| Spindle rotation speed | rpm | Belt 10000/ direct 12000* |
| Spindle taper | | BT40-140 short nose spindle |
| Spindle motor | kw | 7.5 |
| T slot size | mm | 5-18*102*82 |
| Three axis | | Roller Linear guide way |
| X axis rapid feed | m/min | 48 |
| Y axis rapid feed | m/min | 48 |
| Z axis rapid feed | m/min | 48 |
| Cutting feed | m/min | 15 |
| Positioning accuracy | mm/m | 0.006 |
| Min. set moving unit | mm | 0.001 |
| Dimension | mm | 2400*2635*2830 |
| Weight | kg | 4200 |
| Load of table | kg | 550 |
| Standard accessories:

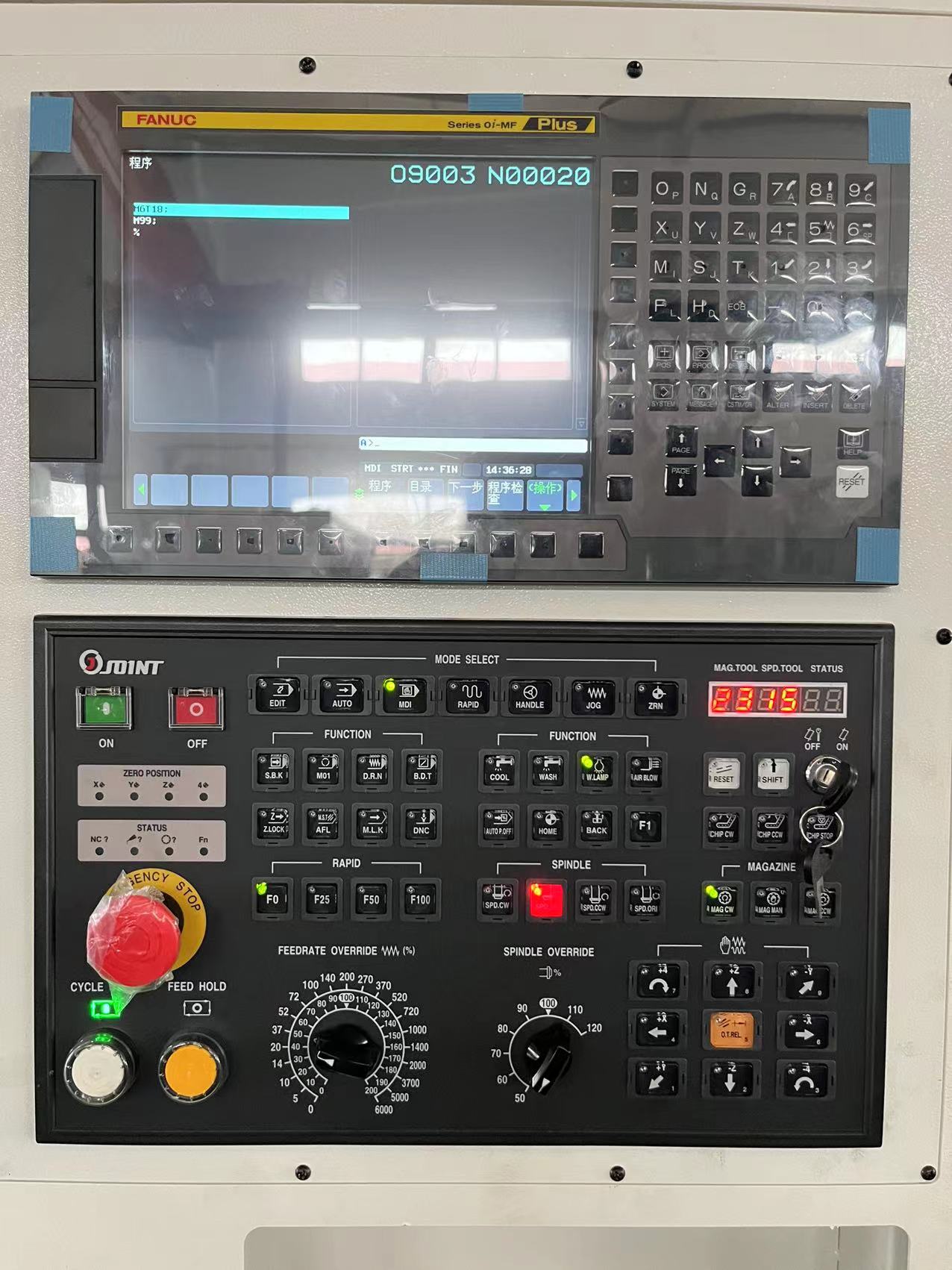

1. Mitsubishi/ Fanuc controller system
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Heat exchange
7. Air gun
8. Water gun
9. Spindle oil coolant
10. 24T Arm type tool magazine
11. Hand wheel
12. Alarming light
13. Working light
14. Guide way cover
15. Technical documents
16. Operation manual
| Optional accessories:
1. Chain type conveyor
2. Coolant through spindle (CTS)
3. 4 axis Rotary table
|
Application Industry:
Overview:
|
|
High Precision CNC Machining Center with 10000/12000rpm Spindle Speed for Parts Processing Images
|
