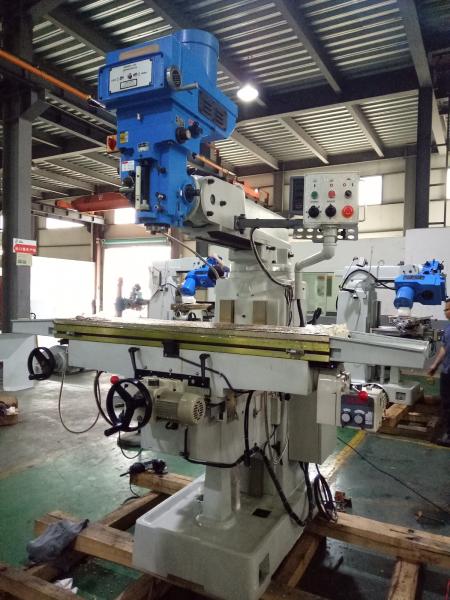

Turret Vertical Benchtop Milling Machine 0.002mm Tolerance NSK P4 Bearing

Name: Turret Vertical Benchtop Milling Machine 0002mm Tolerance NSK P4 Bearing
Brand: JOINT
Price: 1 USD

Brand Name : JOINT

Model Number : 6VB

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : TT/LC

Supply Ability : 1000 SETS/YEAR

Delivery Time : NEGOTIATION

Packaging Details : WOODEN PALLTES / WOODEN CASE

X/Y/Z travel : 1000/390/450mm

Distance from spindle to table surface : 570mm

Bearing : Japan NSK P4 Bearing

Gross weight : 2100kgs

Dimension : 1600*2000*2450mm

Working table size : 1370*330*99mm

Contact Now

Our Key Advantages:

1. Strenghtened machine fuselage which ensures the machine stability.

2. Japan NSK brand bearing.

3. Spindle tolerance can reach 0.002mm.

4. Milling machine is our most professional product.

We have manufactured it since 1995.

We exported lots of milling machine these years. And customers feedback are all good.

Parameters Sheet:

Model				6VB
Table size			mm	137033099
Travel		X axis	mm	1000
		Y axis	mm	390
		Z axis	mm	450
Travel of spindle quill			mm	150
Maximum distance from spindle nose to table			mm	570
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	60-3000 (10 grade)
	Rotation speed (Step speed milling head)	60HZ	rpm	70-3600 (10 grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	60-3250
	Rotation speed (Variable speed milling head)	60HZ	rpm	70-3900
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
	Rotation speed (Inverter speed milling head)	60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt angle		Forward and Backward		±45°
Tilt angle		Left and Right		±90°
Dimension			mm	160020002450
Net weight			kg	2300

Standard Accessories:

1. Taiwan original step speed milling head
2. Working light
3. Draw bar
4. Maual oil pump
5. Manual operation
6. Guide way cover
7. Tool and tool box
8. Clamping kits
9. Milling chuck (7pcs)

Optional accessories:

1. Water pump

2. M12 clamping kits

3. 6' vise

4. X axisp ower feed or Y axis power feed or Z axis elevating motor

5. X/Y two axis/ X/Y/Z three axis DRO

Turret Vertical Benchtop Milling Machine 0.002mm Tolerance NSK P4 Bearing

R8 milling chuck (7 pcs) Water tray

Oversee:

Note: The color can be customized.

Package:

Turret Vertical Benchtop Milling Machine 0.002mm Tolerance NSK P4 Bearing
